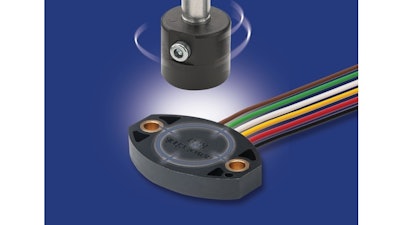

Novotechnik, U.S. (Southborough, MA) introduces the RFD 4000 Series of angle sensors, designed for applications that have tight space requirements, benefit from shaft-free magnetic sensing or require redundancy. Specifically:
- The sensor housing is less than 1.6 x 1.1 x 0.3 in.
- Six measurement ranges available are from 0 to 30° to 0 to 360°.
- Model options include single channel, partial or full 2-channels sensor redundancy.
- Independent linearity of the RFD 4000 series is ±0.5% of full scale and repeatability is 0.1°.
- Operating temperature range of -40° to +125°C.
- The sensors are sealed to IP 67, IP 68 or IP 69 depending on version.
- Output interface options include 0.25 to 4.75 V DC or 0.5 to 4.5 V DC. RSK-3200 Series sensors are extremely durable with MTTF of over 500 years.
All units meet seven EMC standards for immunity to EMI including ISO 11452 for road vehicles.
www.novotechnik.com/rfd, 508-485-2244
